Solarcell2.png ‎(600 × 400 pixels, file size: 40 KB, MIME type: image/png)

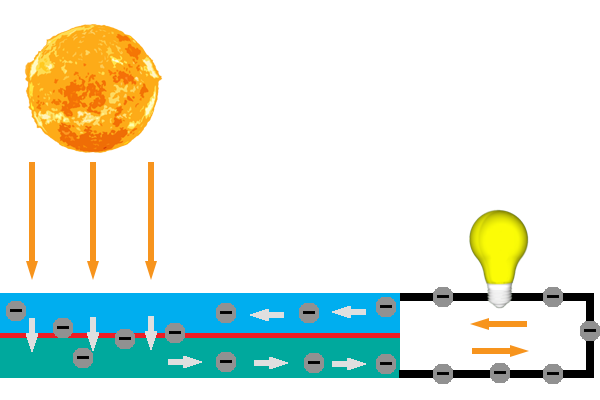

A circuit attached to a solar cell. The electronics are forced from the top layer of the cell through a one-way barrier (depicted in red), at which point they are forced to return through a circuit.
